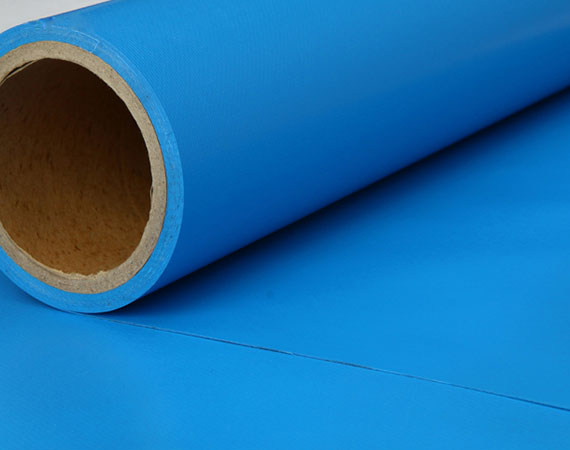

PVC coated polyester PVC coated fabric is a strong, flexible, and waterproof material. Because the fabric is price competitive and durable, it is widely used to make tents, membrane structures, truck covers, inflatable boats, bounce houses, and more.
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
| DIN EN 1049 | Weft: | Threads/cm | 20 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 650 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 2800 |
| Weft: | N/5cm | 2500 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 |
| Weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
The double-sided PVC coated fabric waterproof ensures excellent water resistance for all outdoor applications.
We use high-strength polyester fabric to coat, producing a durable pvc coated tarpaulin with excellent tear and tensile strength.
The PVC coated fabric manufacturers design this material to be easy to weld using high-frequency welding machines or hot air welding machines, and it can also be glued with PVC glue.
Yes, our PVC coated polyester fabric is fire retardant, it will extinguish immediately after leaving the fire.
Depending on the outdoor conditions and UV coating, our fabrics are designed to last between 5 to 10 years without significant degradation.
Yes! As one of direct pvc coated polyester fabric manufacturers, we provide full OEM services for weight (GSM), colors (RAL/PANTONE), and functional treatments (FR/UV/Anti-cold).
